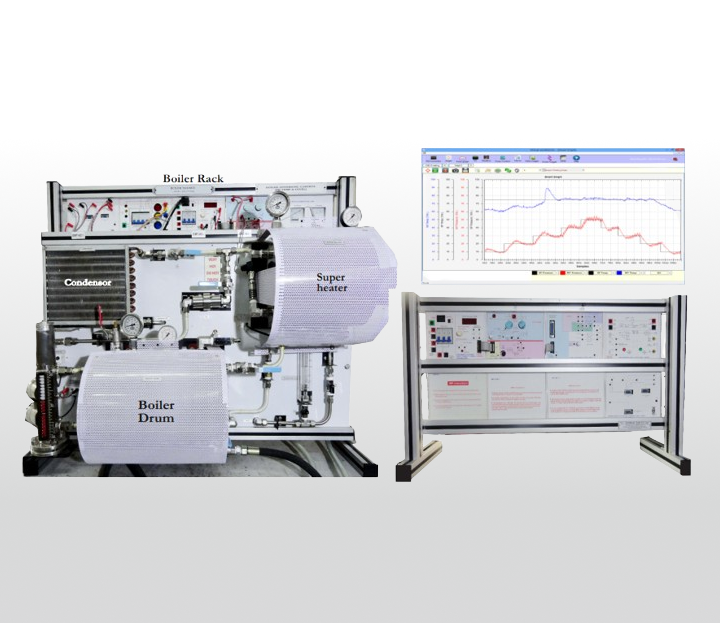

Boiler Trainer (Model : XPO-PCT/BLR)

This system is a PC-based setup with SCADA and multi-loop control, using a non-IBR fire tube boiler for steam generation at 12 Kg/Hr and 3 bar pressure. It’s designed for studying fundamental thermodynamics, energy conversion, and temperature-pressure relationships of saturated steam in a laboratory setting. The setup ensures safe and easy wiring with sturdy 4mm shrouded banana patch cords. Housed in a robust aluminium profile modular flat panel system, the components have colourful, screwless overlays with circuit schematics for easy understanding. The package includes an Instructor Guide and Student Workbook for effective learning.

Categories: ,

Salient Features

  • PC based SCADA & multi loop (3 no’s) control system.
  • Non IBR fire tube boiler since the volume of boiler (21.58 litres) less than 5 gallons (22.75 litres).
  • Facilitates steam generation at 12Kg/Hr @ 3 bar of steam pressure & 150⁰C settable temperature.
  • Laboratory scaled setup for steam generation to verify fundamentals of thermodynamics, energy conversion & temperature pressure relationship for saturated steam.
  • Easy and safe wiring by students due to use of 4mm sturdy Shrouded banana patch cords and shrouded banana socket arrangements for high voltage circuits.
  • Aluminium profile Sturdy (5×4) Modular Flat Panel system, carrying various components housed in plastic enclosures (panels) with colourful screwless overlays showing circuit schematic & its connection tag numbers for easy understanding and connection.
  • Set of Instructor Guide & Student Workbook.

Technical Specifications

Input 3 phase DOLStarter panel (EMT1)

  • 4 pole MCB of 415 V/16A.
  • DOL20AContactor with 230V / 50 Hz / 11VACOIL
  • Bimetallic thermal O/Lrelay with range 7A- 14A
  • Green shrouded socket provided to extend earth

Instrumentation Power supply cum Multichannel DPM panel (EMT 8)

  • DC Multi Output power supply.
  •  Supplies DC power to neighbouring signal conditioning circuit panels like EMT9, CIP1, CIP2, MIT12, CE7 etc. through 20 pin FRC cable.
  • Provides 1 Ph.AC supply through 3 MCB’s, 4A each to power up other panels in the rack.
  • Multichannel 4 position DPM for Pressure, Temp. etc.
  • Green shrouded socket provided to extend earth
