Wireless Technology Trainer (XPO-WLT)

Rated 0 out of 5

The wireless technology trainer and wireless sensor network trainer offer a complete, hands-on setup to explore key wireless protocols—bluetooth, zigbee, and wi-fi—through dedicated 4-node configurations. Housed in a compact aluminium profile rack, these trainers provide modular, tabletop systems ideal for academic and technical environments. With user guides and support for network monitoring via pc (not included), they enable effective learning of wireless communication without memory overlap issues. For combined 3-in-1 configurations, factory contact is required.

Salient Features

Trainer offers comprehensive experiment set up for important communication protocols, viz; bluetooth, zigbee, wi-fi in separate setup of 4 nodes each.
Can’t share ZigBee / Bluetooth with Wi-Fi in one setup due to paucity of memory. GSM set-up is not supplied in rack format else we will need many SIMs.
Default quoted as individual setup. For 3 in 1 option contact factory.

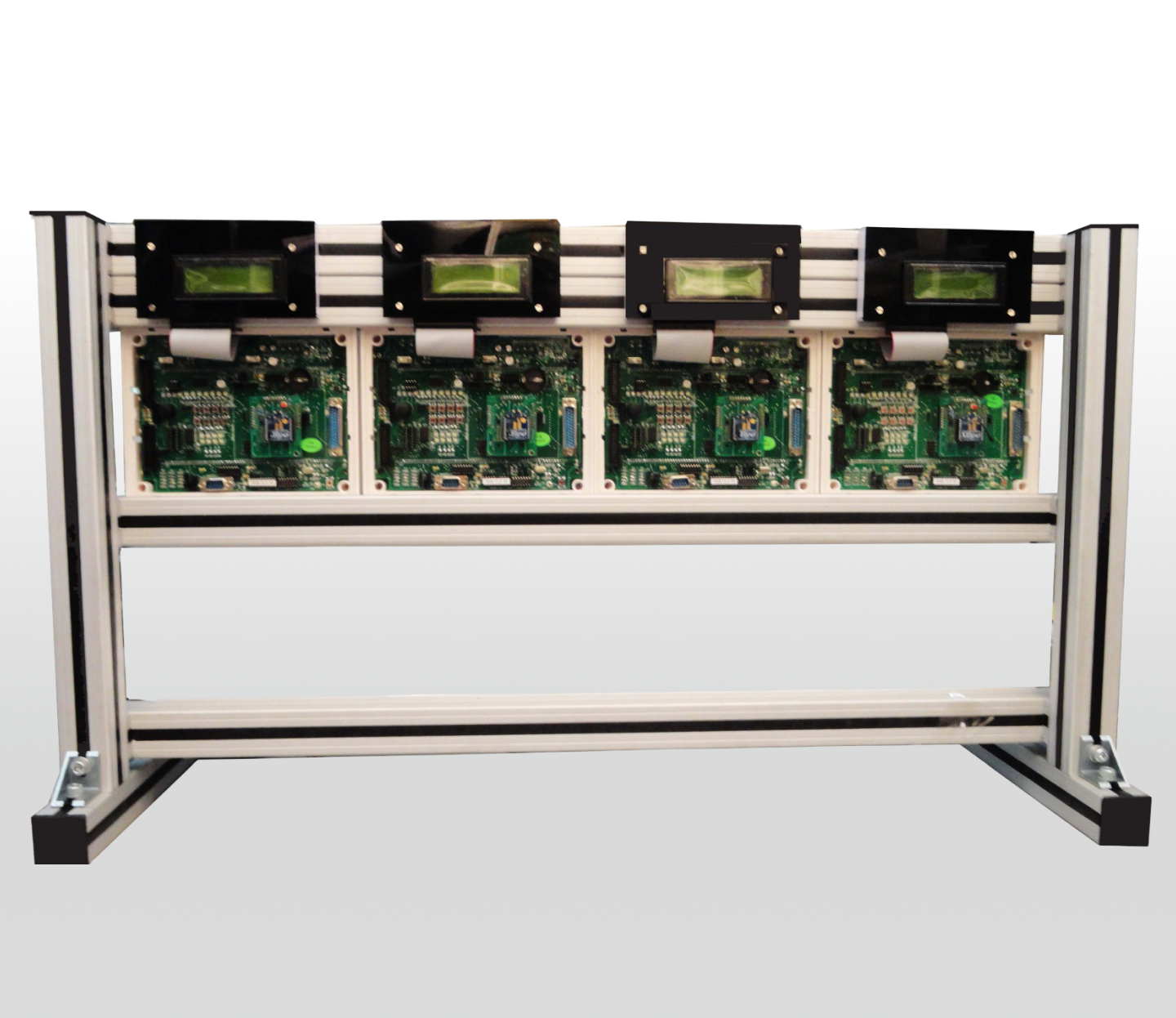

Table top setup made using light but sturdy Aluminium profile (4X2) Rack
Lab PC with serial/USB port required for network monitoring or to work as user, PC not in scope of supply.
Set of Users Guides provided with each unit.

Technical Specifications

Bluetooth (802.15.1)

Module Name: ESD110V2
Operating Freq./ Volt: 2.4GHz-2.5GHz / 3.3V
Module Specifications:
- Mod Method : Gaussian Freq. Shift Keying
- Serial UART speed up to 921.6kbps
- Bluetooth Specification :v2.0+EDR
- Transmit Power – Max. 18dBm
- Receiving Sensitivity: – 90dBm(0.1%BER)
- Supports up to 4 multiple simultaneous connections.
- Working Distance : Normally 100 meters
- Operating Voltage: 3.3V

Zigbee (802.15.4)

Module Name: X’bee series pro 2 (S2C)
Operating Freq./ Volt: 2.4GHz-2.5GHz / 3.3V
Module Specifications:
- Indoor/Urban: up to 133’ (40 m)
- Outdoor line-of-sight: up to 400’ (120 m)
- Transmit Power: 2 mW (+3 dBm)
- Receiver Sensitivity: -95 dBm RF
- Data Rate: 250,000 bps
- Each direct sequence channel has over 65,000 unique network addresses available Point-to-point, point-to-multipoint and peer to peer topologies supported
- Operating Voltage: 3.3V

Wi-Fi ( 802.11 b/g/n Wi-Fi )

Module Name: ESP-01
Operating Freq./ Volt: 2.4GHz-2.5GHz / 3.3V
Module Specifications:
- Processor: ESP8266
- WiFi/Antenna :Internal RF Block/PCB antenna
- Default baud rate:115200 but can be changed
- Operating Voltage: 3.3V
